JT-7100 UHF RFID Reader 3 Meter Range 860 960 MHz Carrier Control Reader Board UHF RFID Reader

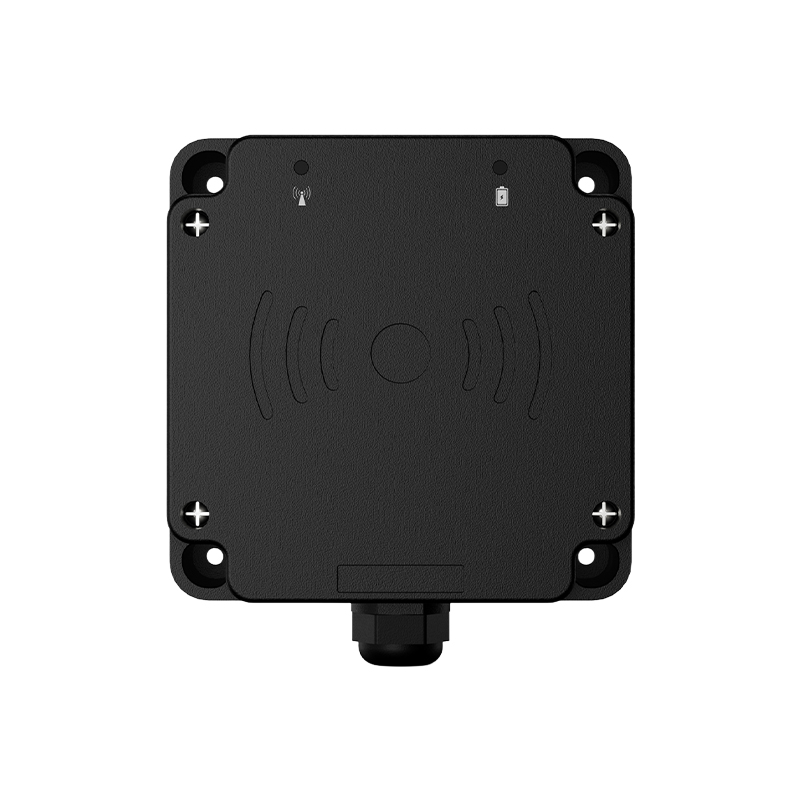

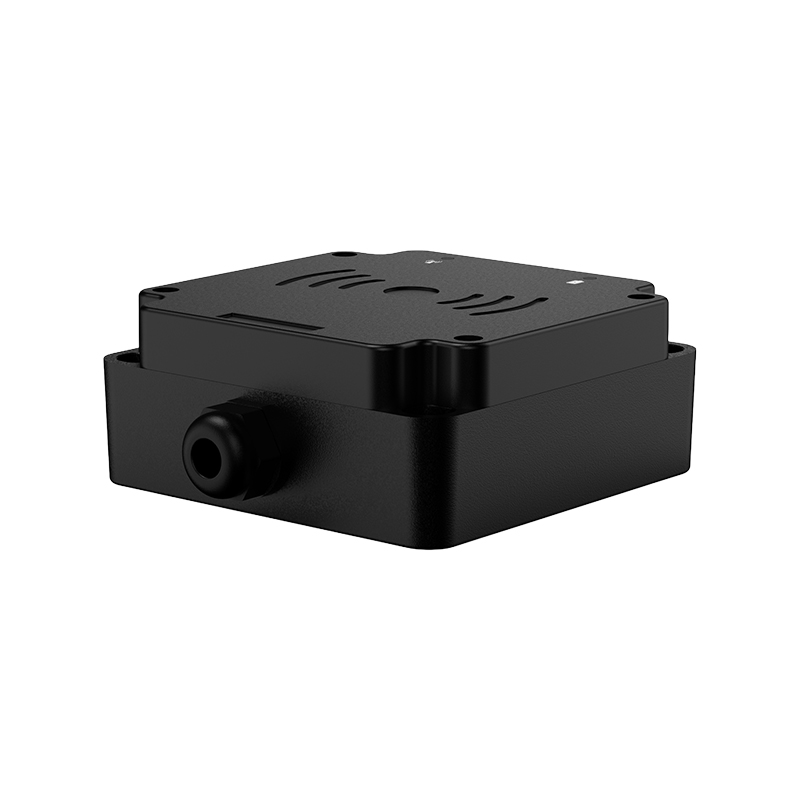

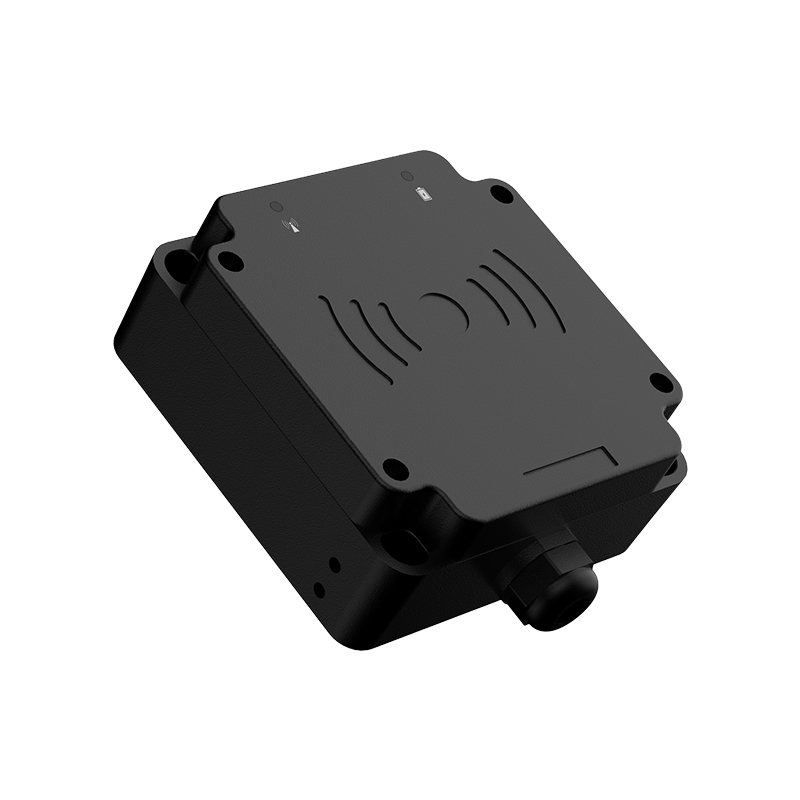

JT-7100The JT-7100 features an industrial-grade design, rugged and durable, suitable for harsh industrial production line environments with an IP67 protection rating. Its radio frequency utilizes a self-developed chip with independent intellectual property, paired with a high-performance tag identification algorithm. It supports industrial-grade MODBUS, PROFINET, and CAN bus protocols. The software intelligently monitors operational status, ensuring 24/7 operation without failure throughout the year. The base cover is designed with an iron plate for easy installation in industrial production line settings. Compact and lightweight, it facilitates integration into industrial production line equipment.
-
Product Advantages
1. Supports industrial-grade Modbus, Profinet, and CAN bus protocols
2. Supports remote online firmware upgrades via RS232, RJ45, RS485, and 4G
3. Supports MQTT protocol
4. This product features a fast read rate and meets the requirements of harsh working environments.
5. High stability, with 24/7 high-temperature test equipment for uninterrupted and stable operation.
6. Supports multiple communication methods, including RJ45, RS485, and RS232.
7. Adjustable output power up to 33dBm, supporting multiple operating modes including timed mode, master-slave mode, and trigger mode.
8. Supports tag return signal strength (RSSI).
9. Utilizing an integrated RF chip, the module offers more stable performance and is more suitable for harsh and demanding application environments.
10. Excellent anti-interference performance and lightning protection circuit design.
11. Utilizes a standard API interface, provides demos and source code, and supports development examples in C#, VC, and JAVA, making integration with RFID software easy.
12. The reader can be password-protected and authorized, preventing unauthorized tags from being recognized.
13. Suitable applications: 3D warehouse management, asset management, animal management, apparel industry management, personnel access control, logistics monitoring, and production automation management.
Precautions
To ensure the normal and stable operation of the device and the safety of your personal and property, please carefully read the following precautions before installing the device:
1. First, check that the ground terminal of the power outlet is connected to the ground and that the local power supply voltage is within the applicable voltage range of the reader.
2. Check that the device and external connections are secure.
3. Pay attention to the type and length of the serial cable: Use a straight-through serial cable, with a maximum length of 10 meters.

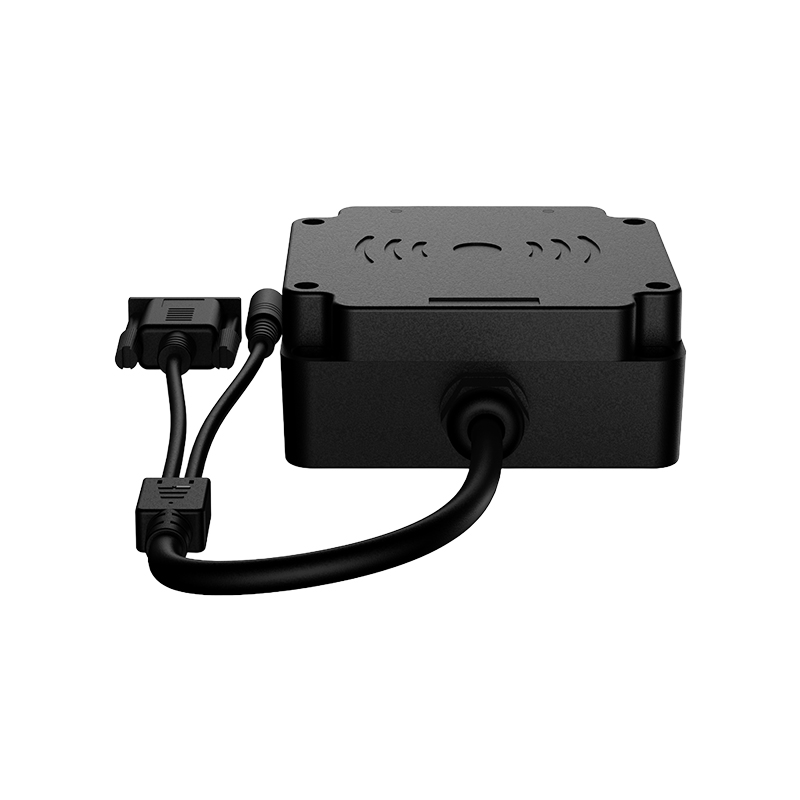

Connecting the Power Adapter
Plug the power cord into an AC outlet. Then, plug the other end of the power cord into the reader's power port and secure it securely.
Turn on the reader. The power adapter indicator will light up. The reader will beep once power is successfully powered on.
Connecting to a PC
The RS232 interface is used for short-range communication (no more than 10 meters). It can be connected to a PC serial port via a DB9 connector to enable communication between the PC and the device.
When using POE power, first confirm whether the router supports POE.
-
Technical Parameters
Model
JT-7100B
RS485,RJ45 (RS232 can be added)
JT-M7100B
MODBUS TCP/IP
JT-M7100C
MODBUS RTU
JT-P7100
Profinet TCP/IP
JT-C7100
CAN bus protocol 2.0
Operating frequency
902~928MHz, 865~868 MHz
Support Agreement
EPC C1 Gen2 ISO18000-6C
RF power
13~33dBm (software adjustable)
Antenna gain
3DBI circularly polarized antenna
Read rate
>700Second-rate/Second
Reading distance
All-in-one machine reading distance:0-4 meters
Label Detection
Support RSSI value detection
Online Upgrade
Support RS232, RJ45 remote online firmware upgrade
Software Development Kit
Demo software and C#, JAVA, Android development kits
Card reading prompt
LED and buzzer
MQTT protocol
Network devices support the MQTT protocol
Modbus protocol
Support Modbus TCP/IP \ Modbus RTU protocol
Profinet protocol
support
CAN protocol
support
Warranty period
Free two-year warranty, lifelong after-sales service and technical support
I/O Interface
2-way trigger input or 2-way relay output (customizable)
RS232 interface
115200 bps (default)
Power supply parameters
Device power supply
DC 9-36V/ POE power supply
Working current
0.65A
Power adapter
12V 3A
Environmental parameters
Operating temperature
-20℃~75℃
Storage temperature
-30℃~80℃
Storage humidity
5%~95%RH without condensation
Physical parameters

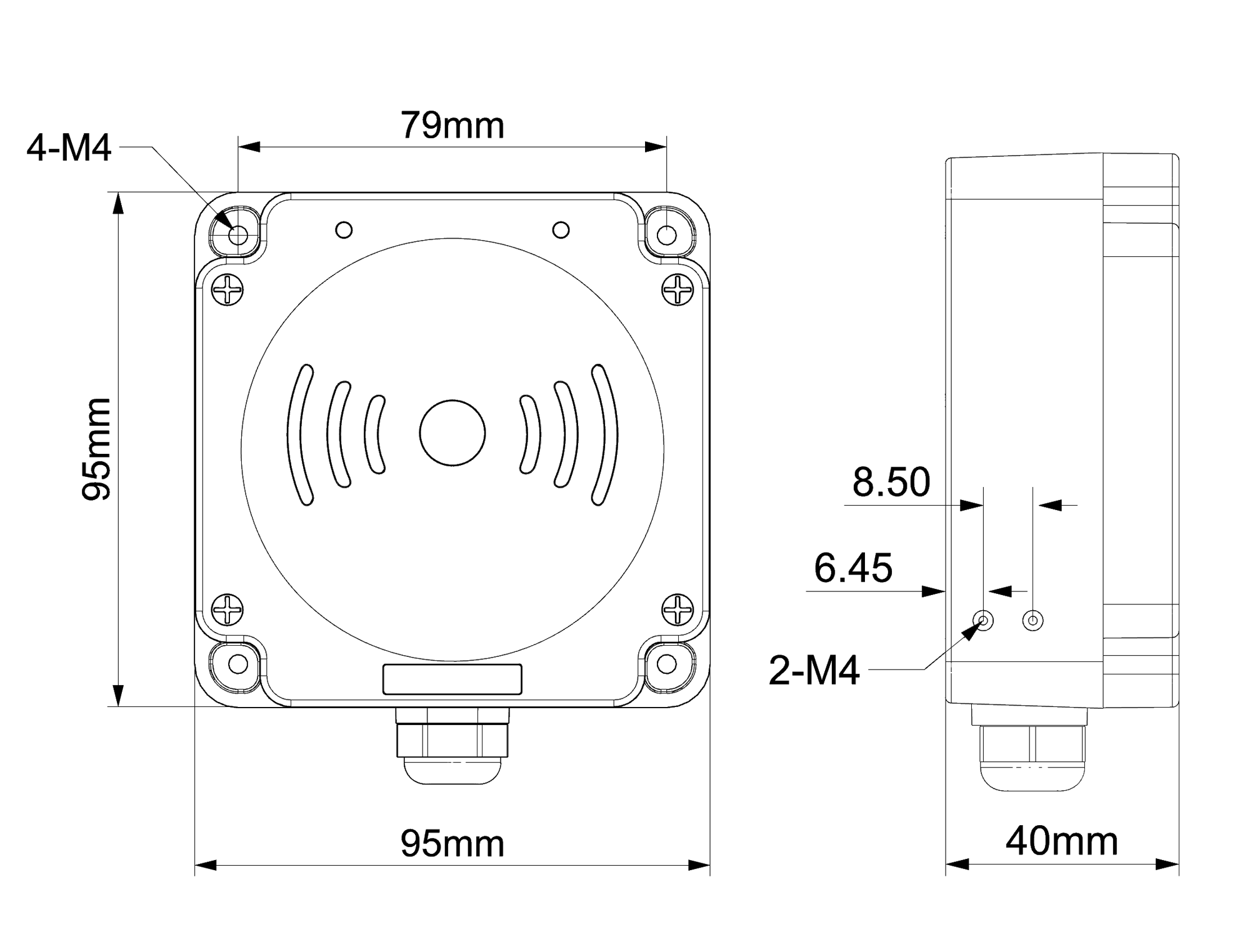

Structural dimensions
95*95*40mm
Product weight
About 1Kg
Shell material
ABS+aluminum alloy
-
