JT-9380 Long-Range UHF RFID Reader Multiple Tags Access Control Card Reader For Efficient Waste Management
JT-9380Medium-Range UHF RFID Integrated Reader
The JT-9380 is a new-generation ultra-high frequency (UHF) electronic tag reader developed by our company. It is compatible with FCC ISM (902~928MHz) and ETSI (865.6~867.6MHz) standards (customization required by users) for reading and writing ISO18000-6C (EPC C1 GEN2) electronic tags. This reader offers excellent performance, ease of use, broad applicability, security, reliability, stability, and practicality. The JT-9380 provides API functions tailored for specific applications, facilitating secondary development by users. Equipped with integrated network interfaces, management software, and database support, it can be easily applied in warehousing logistics, vehicle management, pallet management, assembly line workpiece control, material management, identity identification, access control, and more.
Supports RS232, RJ45, WiFi, 4G remote online firmware upgrades, and MQTT protocol.
-
Product Parameters
Operating frequency
902-928MHz(US),865-868MHz(EU)
Support Agreement
EPC C1 Gen2, ISO18000-6C
Chip
TM series chips
Read and write speed
700 times/second
RF power
0~30dBm (software adjustable)
Power consumption
Average power consumption <9W
Reading distance
Stable reading range 0~9m (depending on antenna configuration and environment)
Antenna gain
8dBi circularly polarized antenna
Software Development Kit
Demo software and C++, C#, JAVA, Android development kits
I/O Interface
2-way trigger input or 2-way relay output (customizable)
Card reading prompt
Buzzer and LED light
RS232 interface baud rate
115200 bps (default)
Operating voltage
10-60V
Working current
0.65A@30dBm,25℃
Power adapter
12V/3A
Industrial lightning protection
6000V industrial lightning protection
Warranty period
Free warranty for 2 years
Operating temperature
-40℃~+75℃
Storage temperature
-45℃~+80℃
JT-9380B
RS232, TCP/IP (POE powered)
JT-9380W
RS232, TCP/IP, WiFi
JT-9380G
RS232, TCP/IP, 4 GPRS
Shell material
ABS and aluminum alloy

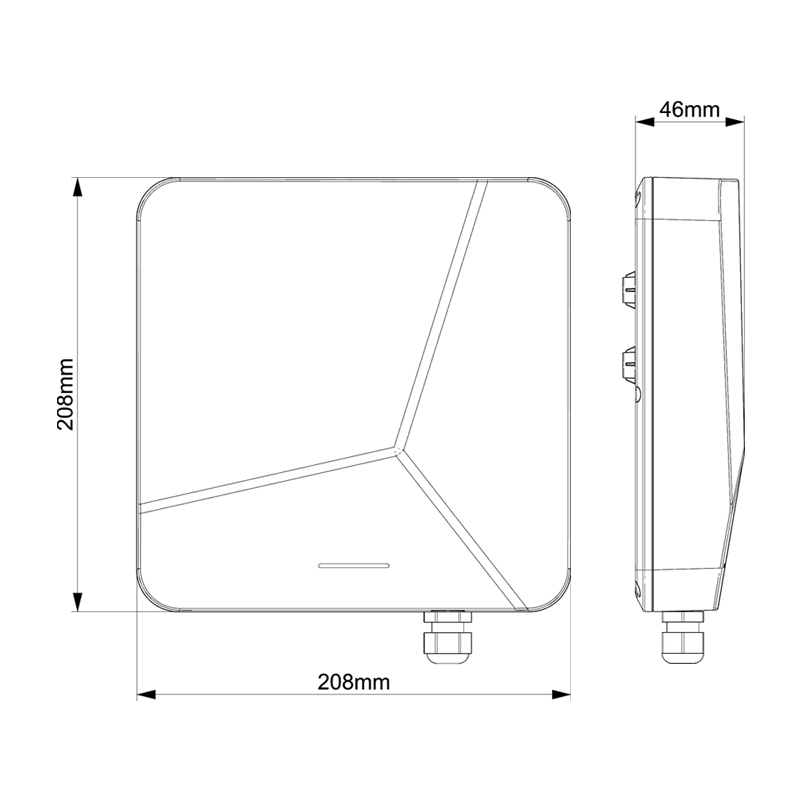

Product size
208*208*46mm
Product weight
1.65kg
Packing size
420*260*100mm
Packaging weight
About 660g
-
