JT-928 TM200 4 Port UHF RFID Reader RS232 TCP/IP For Warehouse Management
JT-928UHF RFID Four-Channel Fixed Reader
The JT-928 is a professional-grade, four-channel TNC, high-performance UHF electronic tag fixed reader developed based on the TM series platform. It possesses complete independent intellectual property. The reader defaults to the 902MHz~928MHz frequency band and supports the ISO18000-6C (EPC C1GEN2) protocol. It features strong multi-tag identification capability, long reading distance, high protection performance, and easy installation and configuration. It is suitable for warehouse logistics, material management, identity identification, access control, and other fields.
Supports RS232, RJ45, WiFi, 4G remote online firmware upgrades, and MQTT protocol.
-
Product Parameters
Operating frequency
902-928MHz(US),865-868MHz(EU)
Support Agreement
EPCC1 Gen2, ISO18000-6C
RF power
0~30dBm (software adjustable)
Reading distance
0~30m (depending on antenna configuration and environment)
Read rate
>700 times/second

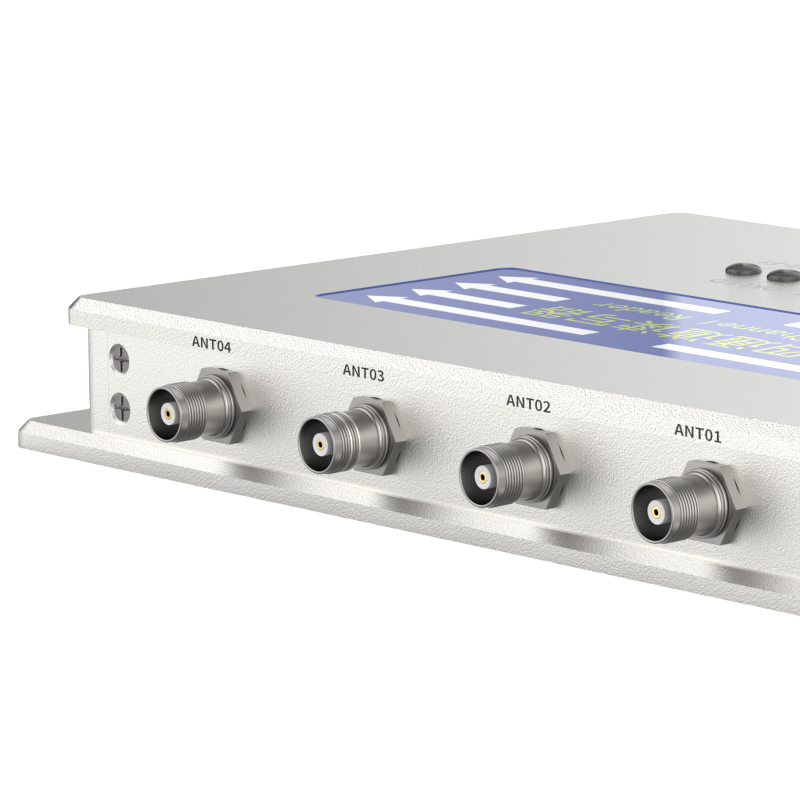

RF interface
4 TNC-KY
Label Detection
Support RSSI value detection
Software Development Kit
Demo software and C#, JAVA, Android development kits

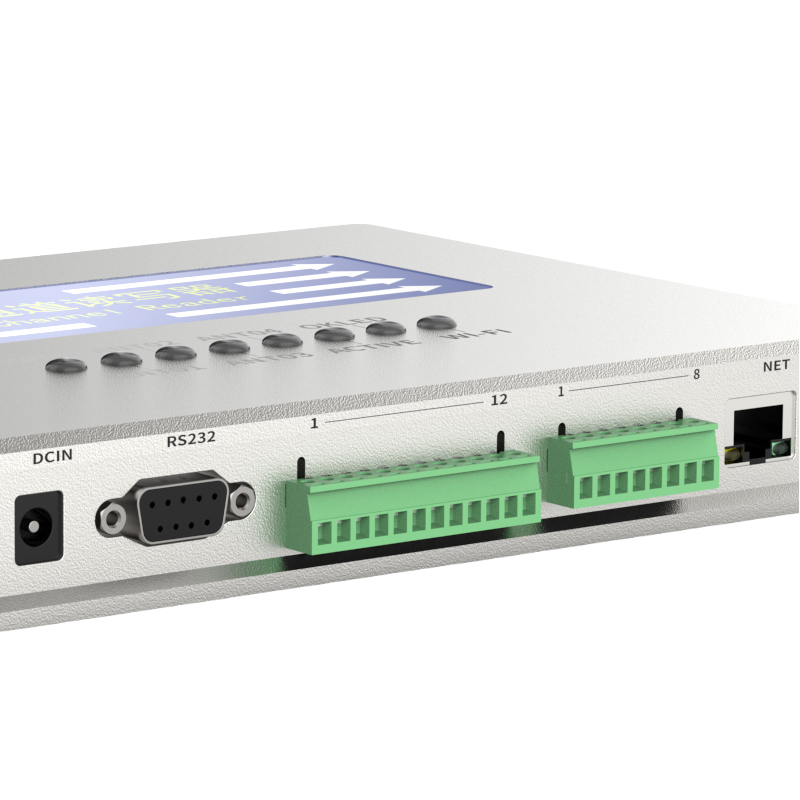

RS232 interface
115200 bps (default)
I/O Interface
2 trigger inputs, 2 relay outputs
Operating voltage
DC 9-24V
Working current
0.65A (@maximum output power 30dBm)
Operating temperature
-20℃~+75℃
Storage temperature
-40℃~+80℃
Storage humidity
5%～95%RH without condensation
JT-928
RS232, TCP/IP (POE powered)
JT-928W
RS232, TCP/IP, WIFI
JT-928G
RS232, TCP/IP, 4G
Shell material
aluminum alloy

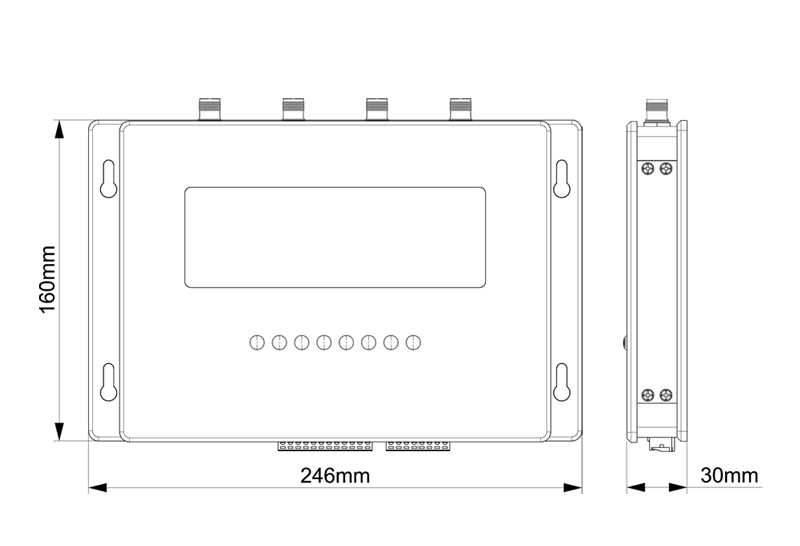

Product size
246mm*160mm*30mm
Product weight
About 1.3kg
-
