JT-6210 UHF RFID Desktop Reader Writer Usb Interface Mini Small Kit Integrated 860-960mhz RFID Reader With SDK
JT-6210UHF RFID Desktop Reader
The JT-6210 is a dual-USB desktop card issuer compliant with the 860-960MHz frequency band RFID technology application regulations and relevant US FCC regulations. It features a built-in antenna and compact design. The dual-USB communication design allows customers to achieve various virtual keyboard output formats easily. Small and lightweight, it is convenient for desktop placement. It ensures stable and reliable data reading and writing, fully supporting the ISO-18000-6C (EPC C1G2) protocol.
-
Product Parameters
Operating frequency
902-928MHz(US),865-868MHz(EU)
Support Agreement
EPCC1 Gen2, ISO18000-6C
Antenna gain
3dBi
Output power
0~18±1dBm
Data Interface
1-way, USB to serial port 2-way, simulate keyboard function
power supply
USB powered
Peak current
60mA (DC12V)
How it works
Buzzer and LED light
Software Development Kit
Demo software and C#, C++, JAVA, Delphi, Android development kits
Communication interface
USB
Frequency Mode
Fixed frequency/frequency hopping
Reading distance
Reading distance of standard white card: about 0~80cm
Card writing distance
Writing distance to standard white card: about 0~15cm
Card reader mode
Single card reading, continuous card reading, simulated keyboard KB port output
Card writing mode
Support batch rewriting of tags
Operating temperature
-20℃~+75℃
Storage temperature
40℃~+85℃
Storage humidity
5%～95%RH without condensation
Shell material
ABS

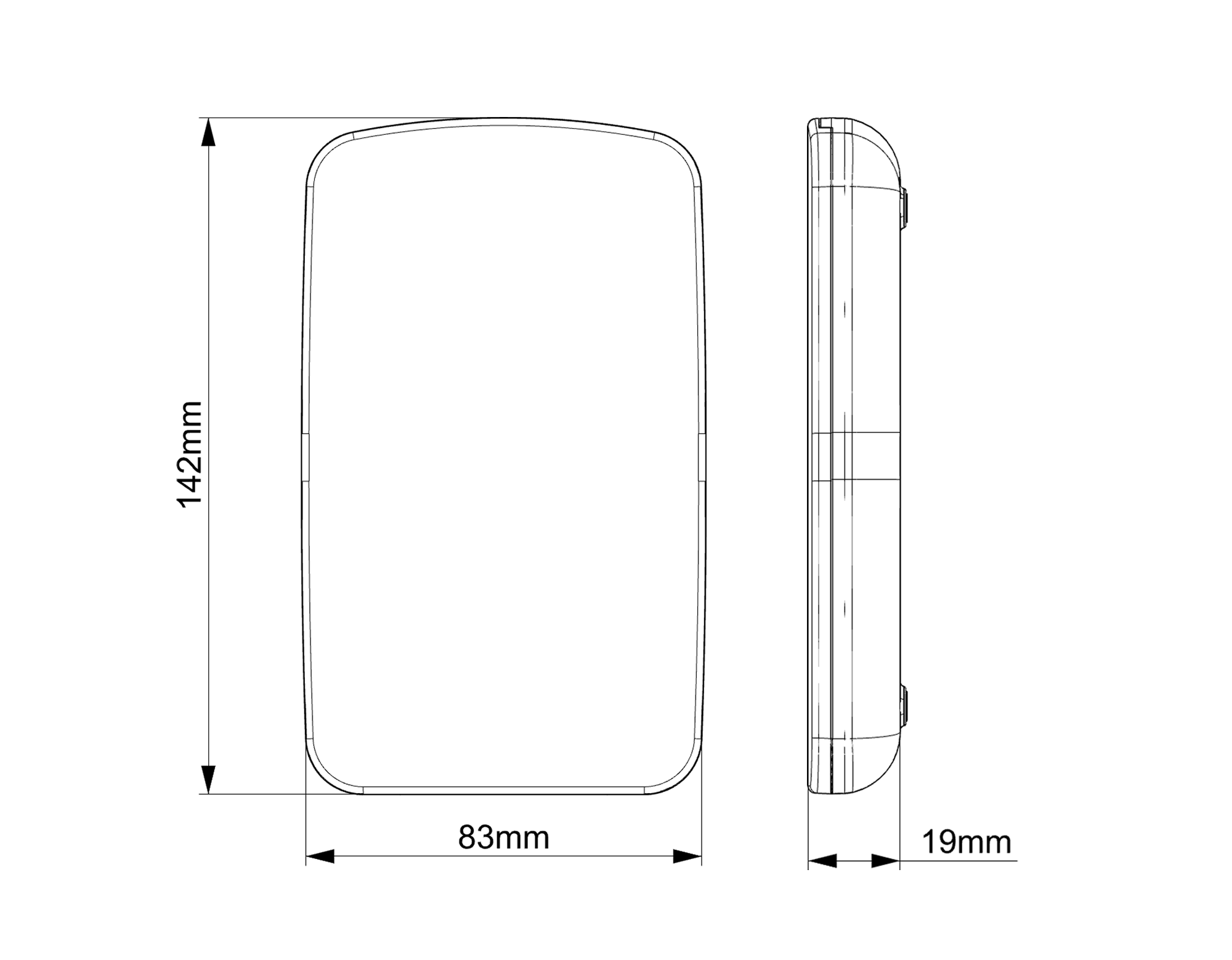

Product size
142*85*20mm
Product weight
132g
Packing size
210*160*40mm
Packaging weight
0.24kg
-
