JT-2540 UHF RFID 4-Port Module With Multiple Tags Reading TM200 OEM RFID Reader Module

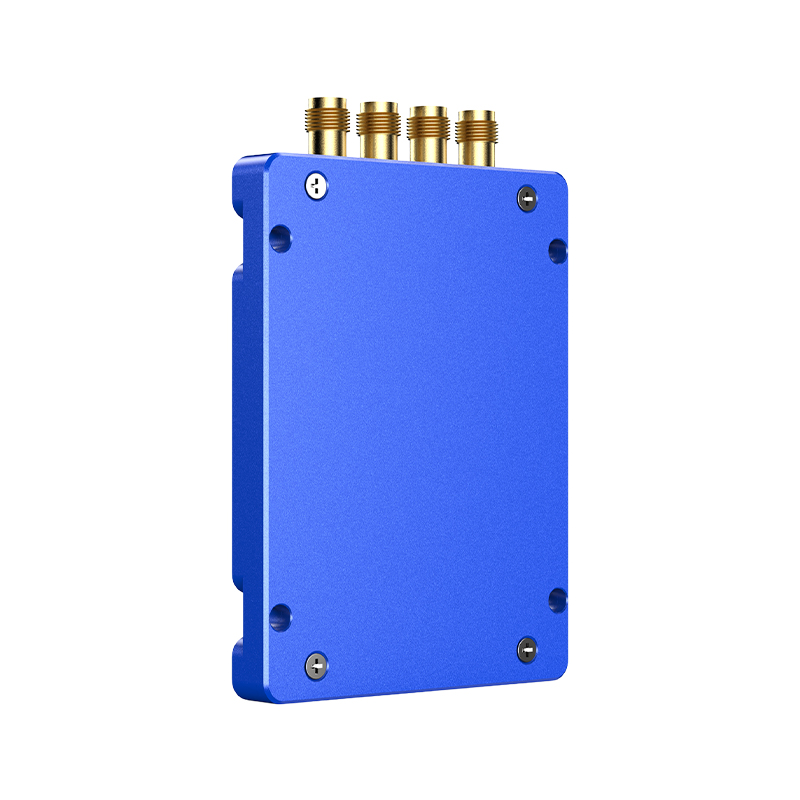

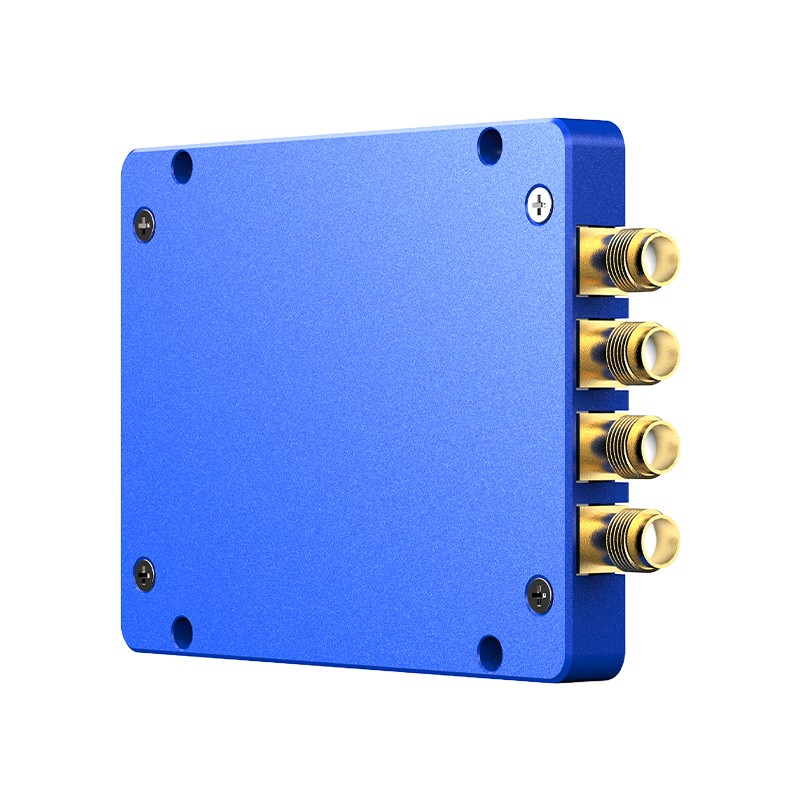

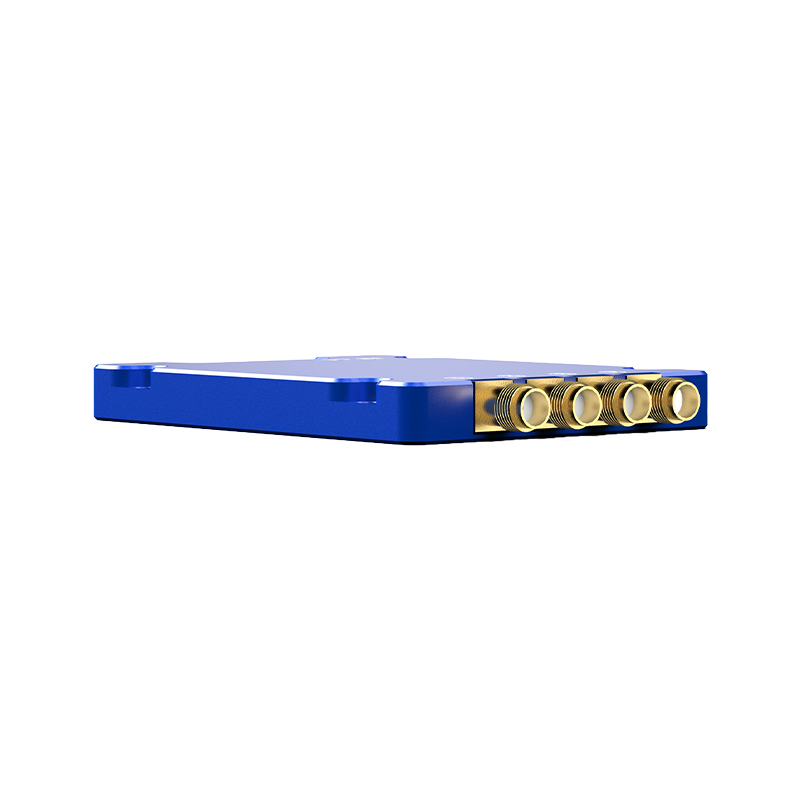

JT-2540Four-Channel Reader Module

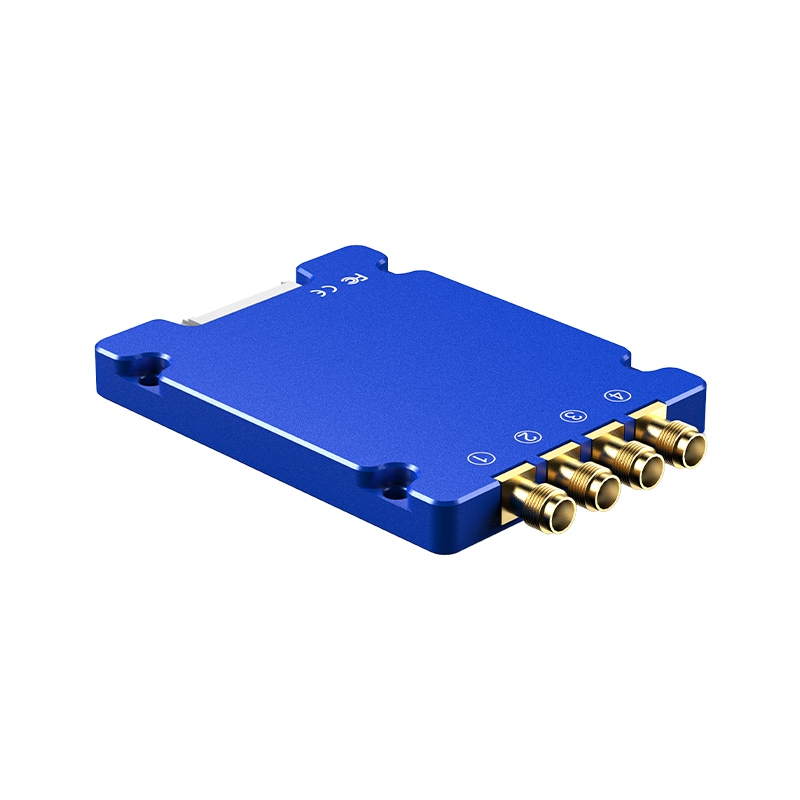

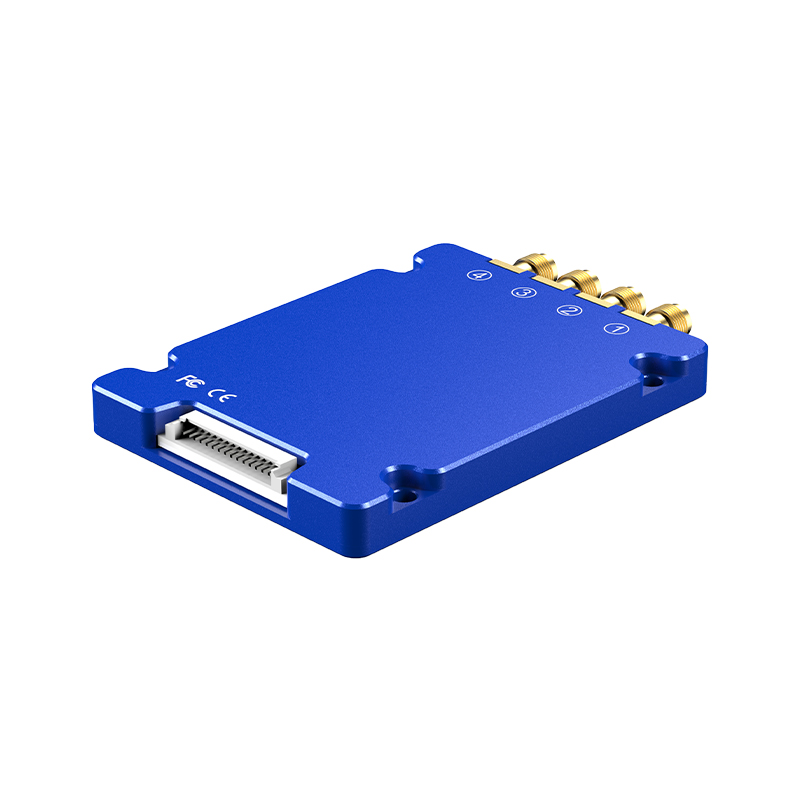

The JT-2540 is a professional-grade, multi-channel, high-performance UHF electronic tag fixed reader module developed based on the TM series platform. It possesses complete independent intellectual property. The reader defaults to the 902MHz~928MHz frequency band and supports the ISO18000-6C (EPC C1 GEN2) protocol. It features strong multi-tag identification capability, long reading distance, high protection performance, and easy installation and configuration.
-
Product Parameters
Operating frequency
902~928MHz,865~868 MHz
Support Agreement
EPC C1 Gen2 ISO18000-6C
RF power
0~33dBm (software adjustable)
Reading distance
7m white card with D-day antenna test, the reading distance is related to the tag type, transmission power and application environment)
Read rate
>700 times/second
Label Detection
Support RSSI value detection
RF interface
4 SMA-K connectors
RS232 interface
115200 bps (default
RJ45 network interface
230400 bps (default)
Device power supply
3.7V～5.0 VDC
Working power consumption
6.36W (@maximum output power 33dBm)
Operating temperature
-20℃~75℃
Storage temperature
-30℃~80℃
Storage humidity
5%～95%RH without condensation
RF interface
SMA-K connector

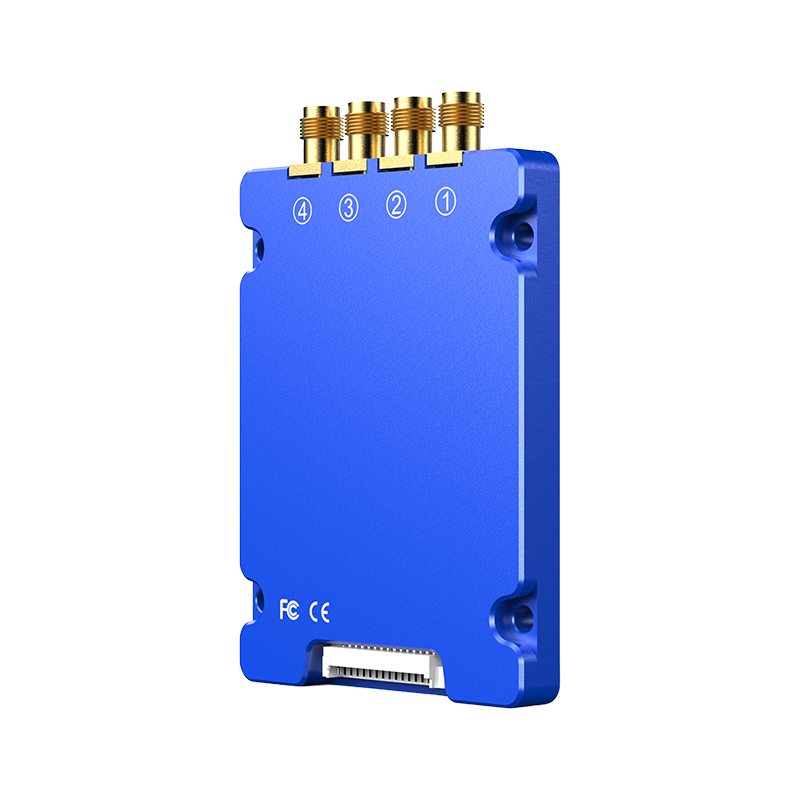

PIN interface
15 PIN, detailed interface definition is as follows
Shell material
Aluminum alloy

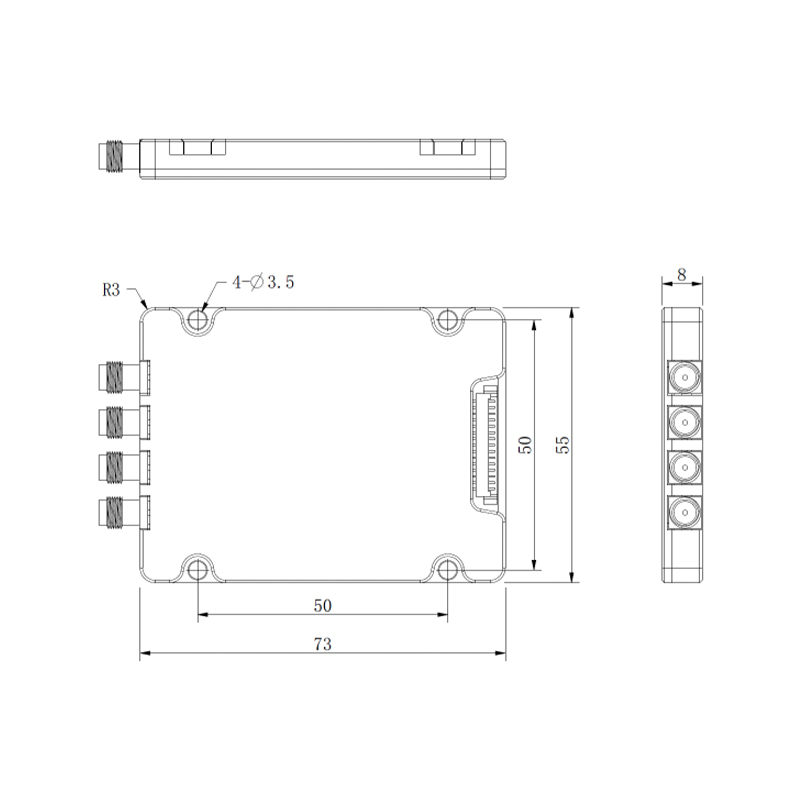

Structural dimensions
73X55X8mm
Product weight
About 63g
GND
Pin1,2
Power ground (signal ground)
VDD_IN
Pin3,4
5.0 VDC
SPI_MISO
Pin 05
MODULE_SPI_MISO
SPI_MOS
Pin 06
MODULE_SPI_MOSI
SPI_CL
Pin 07
MODULE_SPI_CLK
SPI_CS
Pin 08
MODULE_SPI_CS
RXD
Pin 09
MODULE_RXD
TXD
Pin 10
MODULE_TXD
GPIO1
Pin 11
MODULE_GPIO1
GPIO2
Pin 12
MODULE_GPIO2
GPIO3
Pin 13
MODULE_GPIO3
EN
Pin 14
MODULE_EN
RSTN
Pin 15
MODULE_RSTN
-
